Battery Holder Testing & Compliance
Design And Testing, ANSI, EIA, UL.

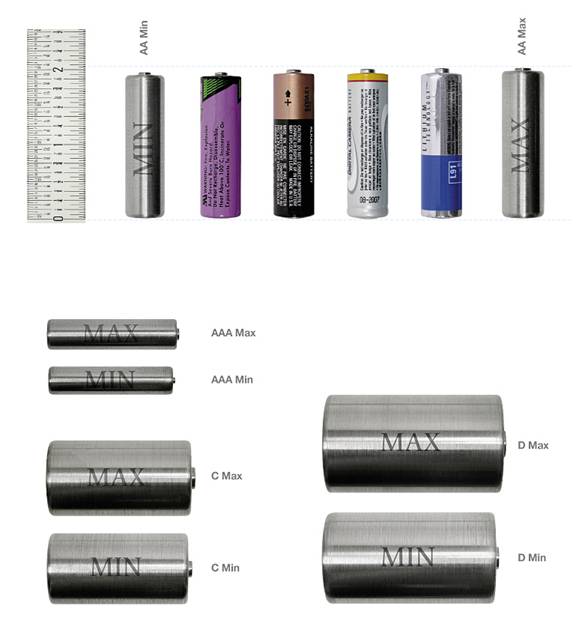

For testing new designs of battery holders, MPD has fabricated min-max sized battery slugs. The slugs are a great aid to our engineering staff in several ways:
- Save time and money by not having to shop for several brands of batteries to confirm that your design works with common batteries.
- More weight than a battery, generating more force during drop testing.
- More durable than batteries when drop testing.
- Will not short circuit, leak or require storage-handling precautions.
The minimum - maximum, length and width for common batteries is fairly wide.
| Length | Height | |||
|---|---|---|---|---|
| Min | Max | Min | Max | |
| Alkaline | ||||
| D cell | 59.5 | 61.5 | 32.3 | 34.2 |
| C cell | 48.5 | 50.0 | 24.9 | 26.2 |
| AA cell | 49.2 | 50.5 | 13.5 | 14.5 |
| AAA cell | 43.3 | 44.5 | 9.5 | 10.5 |
| 6 volt | 23.9 | 25.2 | 12.0 | 13.0 |
| 9 Volt | 46.5 | 48.5 | 34.5 | 26.5 |
| Lithium | ||||
| CR1/2AA | 24.9 | 25.1 | 14.5 | 14.8 |
| CR2/3A | 33.5 | 34.5 | 16.0 | 17.0 |
| CR123A | 33.5 | 34.5 | 16.0 | 17.0 |
| CR1632 | 15.8 | 16.0 | 3.0 | 3.2 |
| CR2032 | 19.7 | 20.0 | 2.9 | 3.2 |
| CR2325 | 22.6 | 23.0 | 2.2 | 2.5 |
| CR2430 | 24.2 | 24.5 | 2.7 | 3.0 |
| CR2450 | 24.2 | 24.5 | 4.6 | 5.0 |
| CR2477 | 24.2 | 24.5 | 7.3 | 7.7 |
IEC-ANSI standards
UL2069: Issue number 2, October 2001
This UL standard determines if batteries are properly retained by a holder. 50 insertion-extractions of the battery are followed by contact retention, conditioning, vibration and jarring tests. Notable in the test procedure is temperature conditioning with unplated copper slugs.
Coin cell battery holder in 60" drop test fixture per UL2069
We used wing nuts for quick mounting of the same PCB to either the jarring or drop test fixtures. Top
UL2069 Jarring test fixture
PCB is mounted on rear side of 3/4" thick plywood board and struck by 2" steel sphere
Top

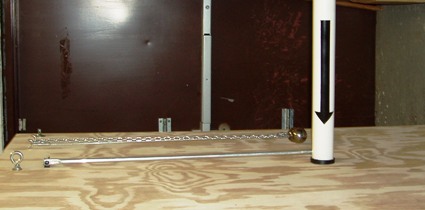

UL2069 Jarring test fixture mounted vertically
For vertical test the 2" steel sphere is dropped down a tube. Battery holder is mounted on rear of same board mounted horizontally.
Top
EIA Specification number, EIA-540J000
The purpose of the specification is to provide standard test methods, gages and performance requirements for battery holders. Tests vibration, shock, contact resistance, solderability, temperature/humidity
The major difference between the UL & EIA tests is that continuity is continually monitored during vibration and mechanical shock in the EIA specification. Minor differences are contact resistance and solderability requirements. The EIA also has separate requirements for coin cell holders and cylindrical battery holders, under EIA-540J0AA & EIA540JAB.
ASTM F963, Toy Safety
Coin cell batteries are specifically exempted from the requirements. Limited requirements for a battery holder as the standards focus is on markings, circuit protection, harness wiring and limiting access to batteries without tools. Minor requirements for the battery holders connectors and wires flammability rating, V-0 and insulation heat resistance.
TopUL913
Intrinsically safe apparatus, ANSI/UL. If you need to meet this requirement, contact our engineering dept or a professional industrial designer or engineering company.
| Description | Contact | |
|---|---|---|
| Electronic Industries Alliance | ||
| ANSI/EIA-540J0000 | Generic spec of battery sockets. | www.eia.org |
| ANSI/EIA-540J0AA | 1/2A, 2/3A, A, AA battery holders | www.eia.org |
| ANSI/EIA-540J0AB | Coin cell battery holders | www.eia.org |
| ASTM International | ||
| ASTM F963 | Toy safety standard | www.astm.org |
| BatteryHolders.org | ||
| Battery Holders | Battery and holder standards, newsgroups | BatteryHolders.org |
| Memory Protection Devices | ||
| Technical Area | Designs and application tips | Application notes |
| Index | Contact, cross reference, FAQ, forms | FAQ & Index |
| Underwriters laboratories, Inc. | ||
| UL2069 | Coin, AAA to D cell battery holders | www.ul.com |
| Index | Contact, cross reference, FAQ, forms | www.ul.com |
| United States Patent Office | ||
| USPTO | Hundreds of US patents | www.uspto.gov |
Product Safety Compliance
Batteries are considered safety critical components by compliance laboratories. A properly designed circuit with reverse current charging protection of lithium batteries is required, typically two blocking diodes in series or a voltage blocking component plus a current blocking component (diode-resistor combination). Plastic components like battery holders have safety requirements when part of a circuit containing any kind of battery or battery charging circuits. MPD's drawings contain the necessary information to make your collecting of documentation for product safety easier.
